1. What is this product used for?
This is a 5MP network IPC zoom camera module with a 10X optical zoom lens, designed for surveillance, industrial monitoring, and remote observation applications requiring long-distance detail capture.
2. What is the image quality?
The module supports:
- 5 Megapixel (5MP) resolution
- Up to 5MP @ 25FPS
- High-definition imaging with optical zoom (no digital degradation during zoom)
3. Does it support remote control?
Yes. It supports:
- Remote APP control - HiEasy (zoom control / operation functions depending on integration)
- Network-based control
4. Which protocols are supported?
The module supports:
ONVIF protocol (for NVR / VMS integration)
RTSP streaming protocol (for video transmission and integration)
5. How is the camera connected?
It uses RJ45 Ethernet port for data transmission.
6. What is the power supply requirement?
12V DC power input
Connector: 5.5 × 2.5 mm DC interface
7. Can it work with standard surveillance systems?
Yes. Because it supports ONVIF + RTSP, it can integrate with:
- NVR systems
- VMS platforms
- Third-party surveillance software
8. Do you provide development documentation?
Yes, development documentation is available for system integration, including protocol information such as ONVIF, RTSP, and control interfaces.
Please access the full developer documentation package at directory
Username: admin
Password: (leave blank / no password required)
Verification Code: required (enter the on-screen captcha code to log in)

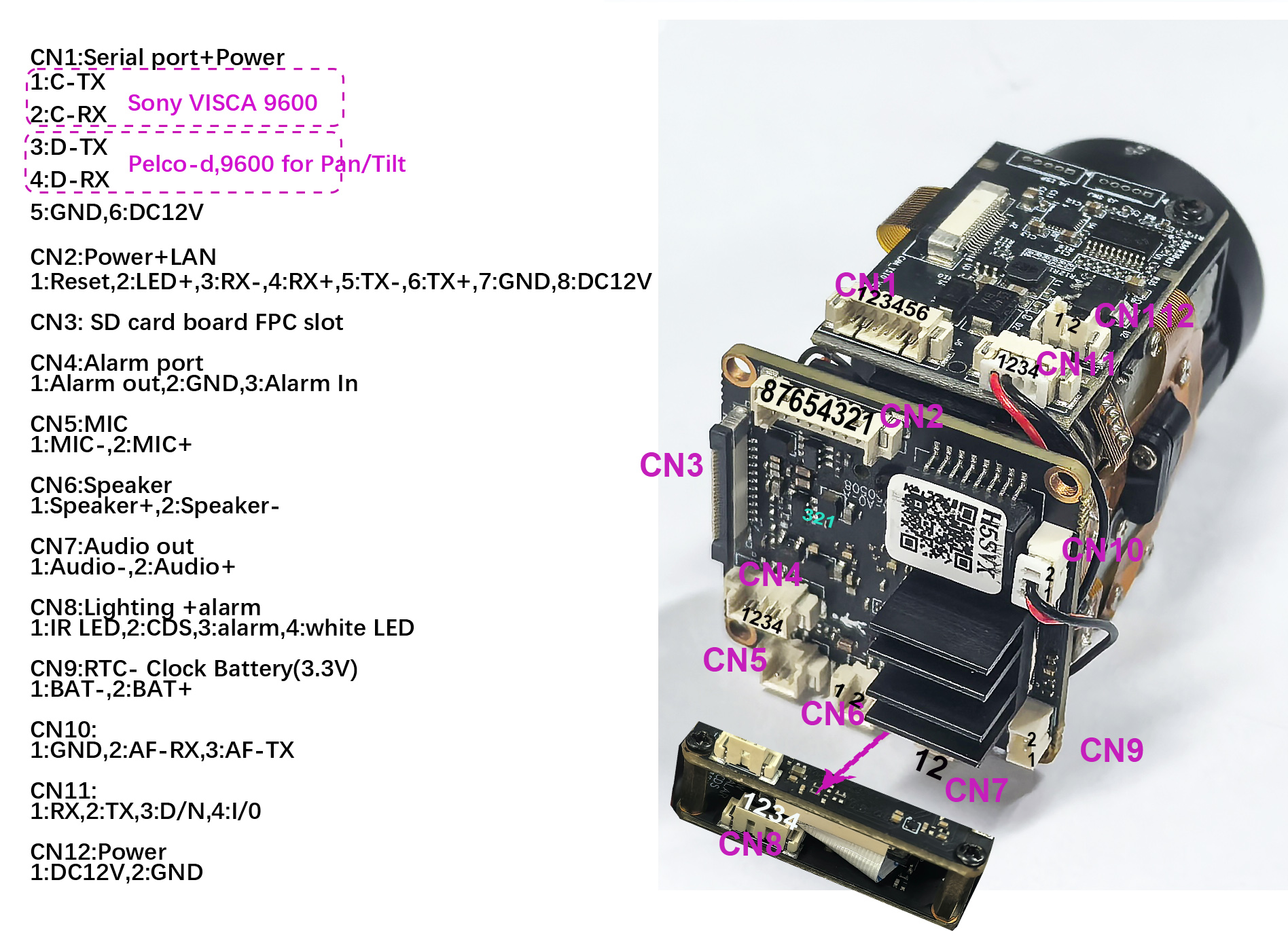

Interface Overview
