WiFiLink 2 supports both msposd and mavlink protocols.

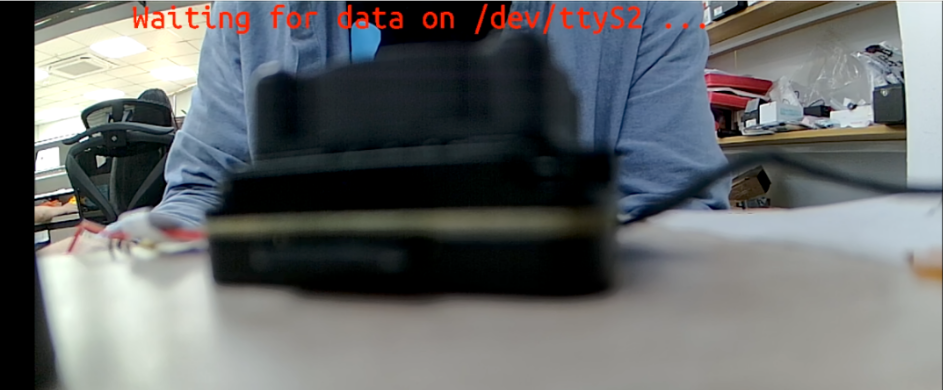

When the OSD mode in the user.ini file on the SD card is set to msp, the red text shown below will appear.
This message only appears if msposd fails to detect serial port data. In contrast, mavlink does not perform this check or display such warnings. This is the standard behavior of OpenIPC firmware when handling OSD data input.

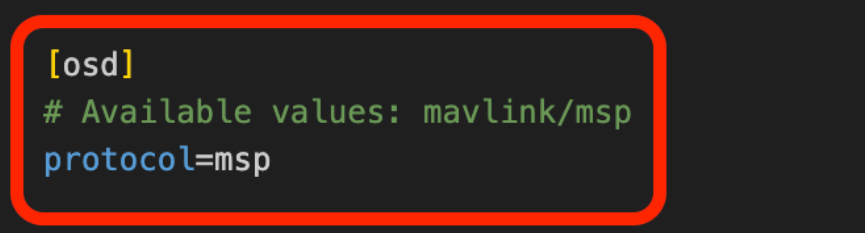

To removed the red text, please edit the user.ini file and change the value of osd from msposd to mavlink.
After saving the changes, insert the microSD card back into the WiFiLink 2 and power it on again. The new settings should take effect.
