Suggestions on WiFiLink RX about RubyFPV Firmware Version and Antenna Installation

1. Can I use the Ruby 11.1 beta firmware?
Not recommended. The Ruby 11.1 beta firmware has known crash issues. For better stability, we recommend using Ruby 10 (stable version).

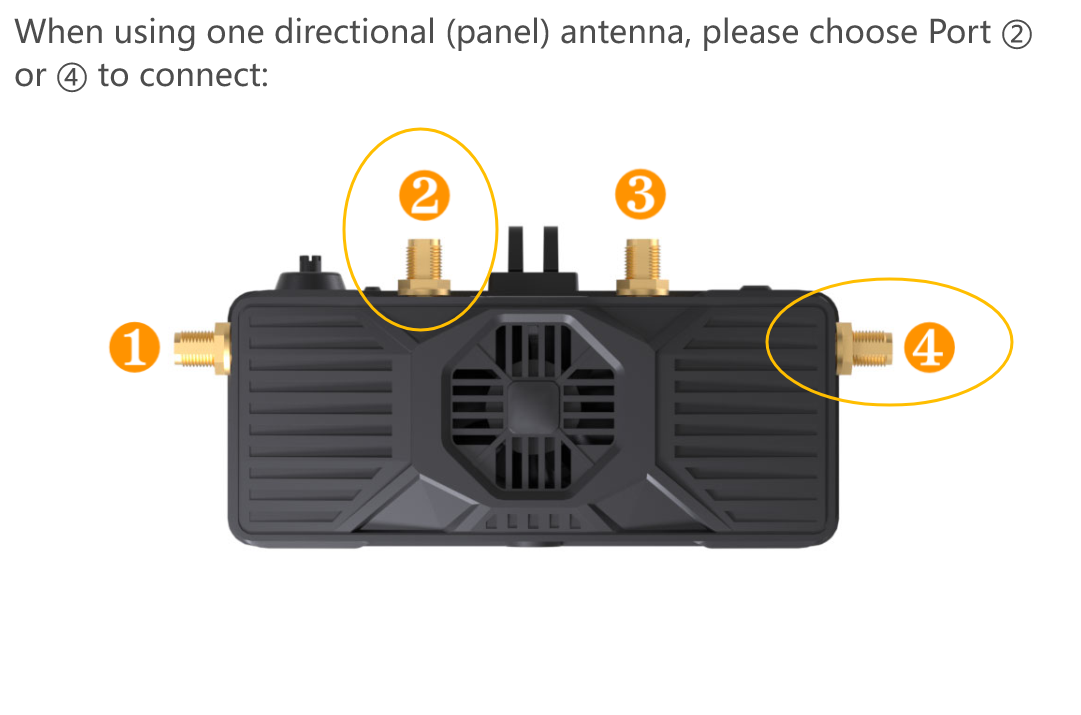

2. If I'm using only one directional (panel) antenna, which port on WiFiLink RX should I connect it to?
Connect the panel antenna to port ❷ or ❹ (choose one), and the remaining ports can be connected to the stock or omnidirectional antennas.

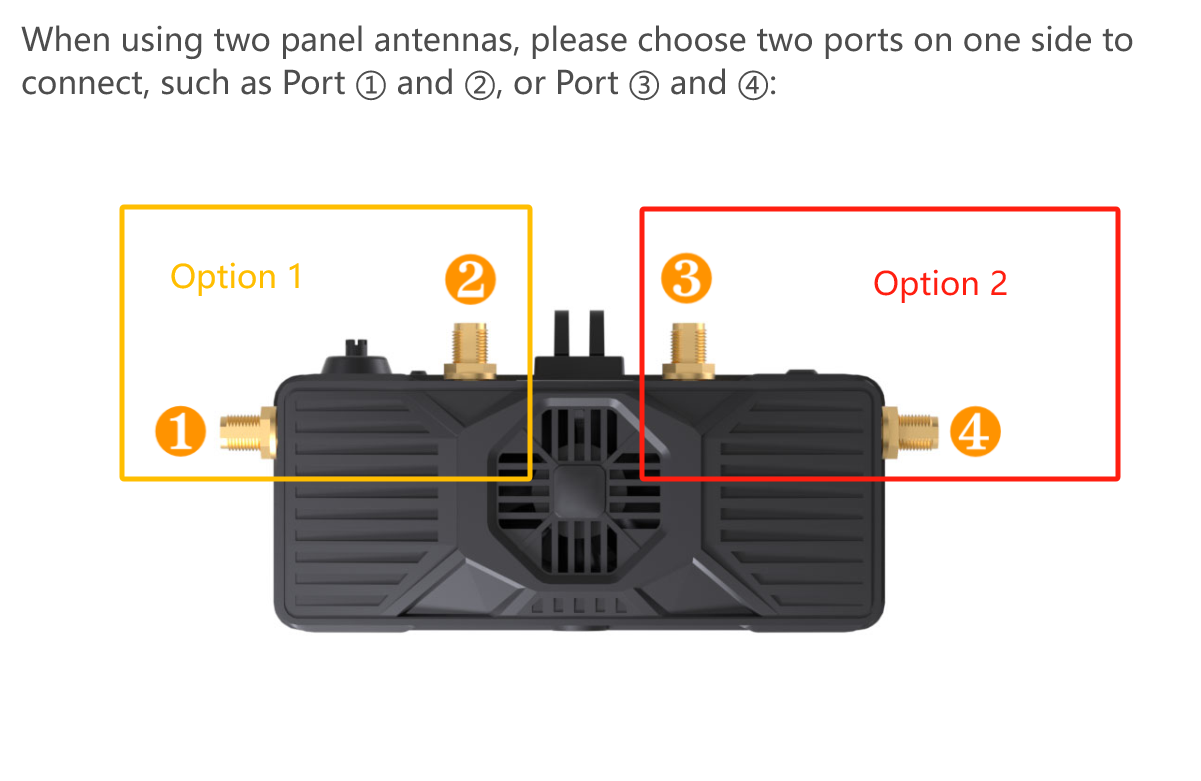

3. If I'm using two panel antennas, how should I connect them on WiFiLink RX for best performance?
We recommend the following port combinations:

❶ and ❷, or❸ and ❹

📌 Prefer connecting to two ports on the same side for better reception. Any remaining ports can be connected to the stock or omnidirectional antennas.

4. Do I need to align the antenna direction before flying?
Yes. Make sure the panel antennas are aligned with the aircraft’s flight path to ensure optimal signal strength and stable reception.
